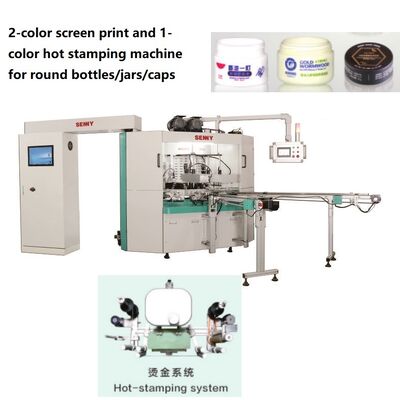

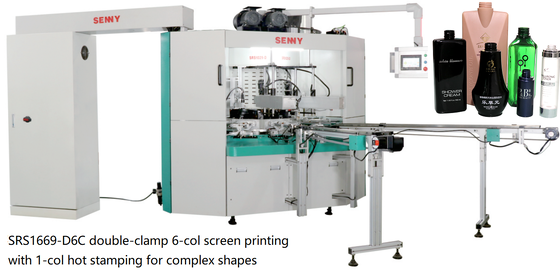

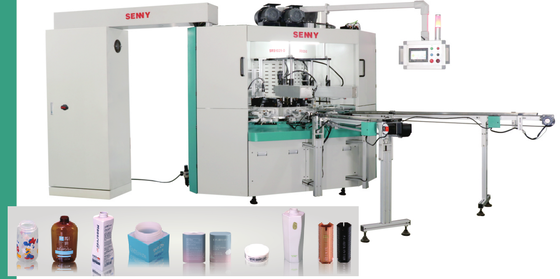

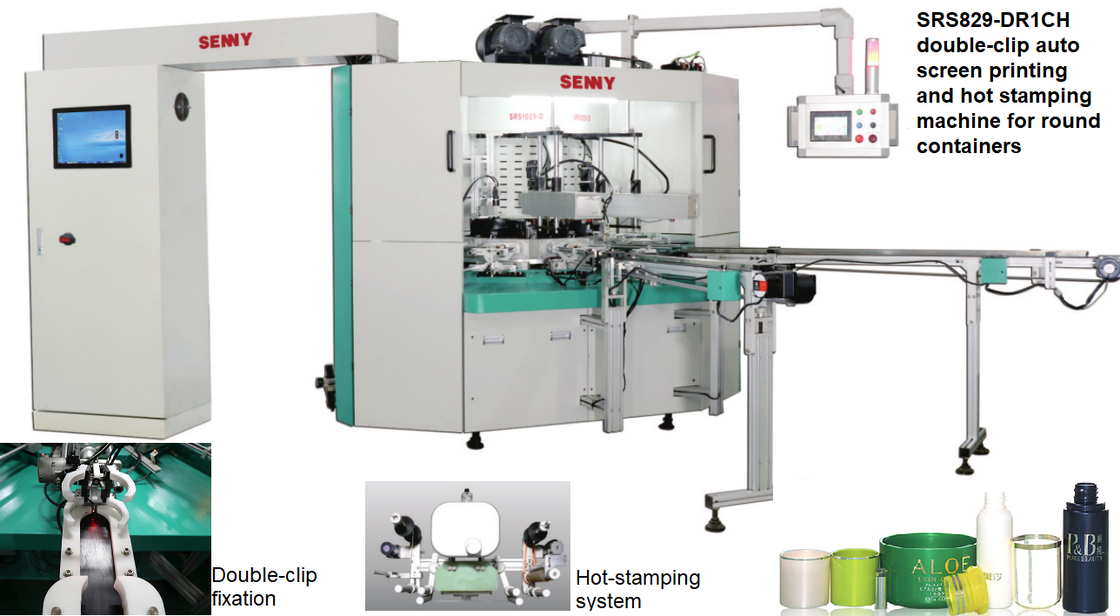

Mini Container CNC Automatic Printing Machine With Visual registrations functions

Machine Features
The machine is suitable for screen printing various colors of UV ink, hot stamping and other decorations on bottles,jars,caps and other materials.

The machine is specially developed for small container printing,with conpact structure and small footprint.
The machine adopts an intergrated turnable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as +/- 0.1mm,and the product won't be scratched.
The machine is driven by digital control servo motor to realize 360-degree printing of productsquipped with remote management and service functions (Industry 4.0).
The machine adopts well-known brand electrical components, PLC control system, easy-to-usetouch screen and wireless tablet operation, with reliable performance.

Optional Configuration

Plasma surface treatment function

Finished product quality inspection function.
LED-UV curing system

Hot stamping function

Visual registration function.

Technical Parameters
MachineModel                                        SRS829                     SRS1039                       SRS1249                             SR1669
Work Station                                                  8                                 10                                12                                        16
Printing Speed                                        Up to 45pcs/min          Up to 45pcs/min      Up to 45pcs/min            Up to 45pcs/min
Diameter at 360 Degree                           13-60mm                       13-60mm                   13-60mm                         13-60mm
Container Heighta                                      20-200mm                   20-200mm                  20-200mm                      20-200mm
Max Printing Length                                     200mm                      200mm                        200mm                               200m
Max Printing Height                                     160mm                      160mm                           160mm                          160mm

Printing Samples
