1+4 color Servo motor CNC Soft tubes UV Screen printing machine
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | SENNY |
| إصدار الشهادات: | CE |
| رقم الموديل: | SRS566 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | حزمة الخشب الرقائقي |
| وقت التسليم: | شهر واحد |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 10pcs /شهر |
|
معلومات تفصيلية |
|||
| حجم الطباعة: | حجم مخصص | طباعة المتانة: | متانة عالية |
|---|---|---|---|
| أبعاد الآلة: | 1200 مم × 800 مم × 1400 مم | شكل المنتج: | أنبوب دائري |
| أرقام اللون: | 4 ألوان | دقة: | ما يصل إلى 1200 نقطة في البوصة |
| أتمتة الطباعة: | تلقائي | ضمان: | سنة واحدة |
منتوج وصف

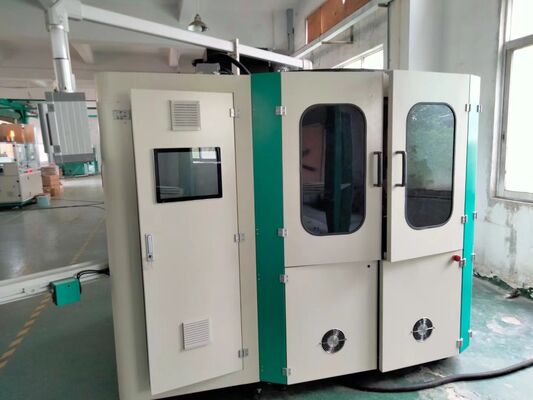

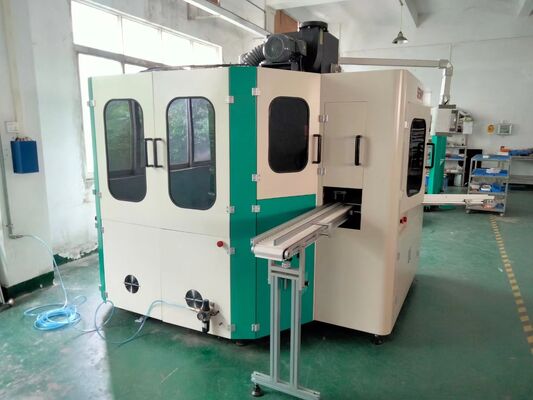

1+4 Colors Rotary Table Automatic Tube Screen Printing Machine
Applications:
The machine can be used for printing bottles, jars, etc. This machine shows 4 colors screen printing for round bottles. The bottom of the bottles have the position. The machine also can be positioning according to the bottom like the tradition way. The machine has a rotary table. The all functions will be finished only by running one circle. High speed, and small area covered. It is worthy buying.
Features:
1. Less tooling, easy operation, low maintenance and high accuracy. High colour to colour register accuracy.
2. Controlled Servo-moto, with kinds of monitor system to ensure the machine running stable and safe at high speed.
3. According to the characteristics of products , this machine can be equipped with kinds of functions, such as hot-stamping system and UV-LED system.
4. The machine size and color can be customized.
Technical Specification:
| Product diameter | Φ20-Φ80mm |
| Product height | 20-200mm |
| Printing Speed | Up to 3000pcs/hr |
| Max Printing Area | L250mmxW150mm |
| Max screen frame size | L450xW250mm |
Printing samples
![]()
