Single Color 5000pcs/Hour Fully Automatic Screen Printing Machine 250x150mm
تفاصيل المنتج:
| مكان المنشأ: | دونغقوان قوانغدونغ الصين |
| اسم العلامة التجارية: | SENNY |
| إصدار الشهادات: | CE SGS |
| رقم الموديل: | SRS818 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | حزمة الخشب الرقائقي |
| وقت التسليم: | شهر واحد |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 10pcs/شهر |
|
معلومات تفصيلية |
منتوج وصف

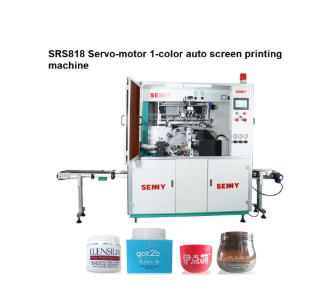

Servo Motor Controlled Fully Automatic Screen Printing Machine For Single Color Max Printing Speed Up To 5000pcs/Hr
Technical specification:
| Model | SRS818 | SRS818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr | Up to 5000pcs/hr |
Product Features:
1. Automatic screen printing machine for plastic soft tube,round cans,and round caps,having auto feeding function,electrostatic dust removal function,flame treatment function,servo-drive registration function,auto printing &UV curing function. SRS818 saves very much labor for changing different products,shorten the adjustment time,working wold be more easier.
2. According to requirements, different kind machines can be made,like inner mode printing or clamp type printing.
3. Servo-drive with color mark pre-registration or servo-drive visual pre-registration function are options for you
4. With touch panel,it is easy to realize the man-to-machine dialogue,and it also has complete warning system
5.All servo driven screen printer with best accuracy.
6.All jigs installed with servo motors for rotation(no need gears ,easy and fast product changeover)
Feeding device:
Output device:
