1-8 Colors Plastic Bottle Automatic Linear UV Printing Machine SL1266
تفاصيل المنتج:
| مكان المنشأ: | Dongguan الصين |
| اسم العلامة التجارية: | SENNY |
| إصدار الشهادات: | CE SGS |
| رقم الموديل: | SL1266 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1pc |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | حزمة الخشب الرقائقي |
| وقت التسليم: | 45 يوم |
| شروط الدفع: | ر/ر |
| القدرة على العرض: | 10 أجهزة كمبيوتر/شهر |
|
معلومات تفصيلية |
|||
| نموذج الآلة: | SL1266 | لون الطباعة: | 1-8 ألوان |
|---|---|---|---|
| نوع اللوحة: | طابعة الشاشة الخطية | ضمان: | 1 سنة |
| خدمات ما بعد البيع: | فيديو أو عبر الإنترنت | تفاصيل التغليف: | حزمة الخشب الرقائقي |
منتوج وصف
1-8 Colors Plastic Bottle Automatic Linear UV Printing Machine SL1266
Machine Feature
- The machine is suitable for screen printing of various colors of UV ink, hot stamping, labeling and other decorations on round, oval, square and other shapes of plastic bottles—delivering sharp screen-printed patterns, bright hot-stamped finishes, and firm label adhesion that resists friction.
- The machine uses a highly customizable modular structure, which can be connected in a straight line to be a 1-8 color printing machine.
- The standard configuration of the machine is a screen printing and UV curing module, and the screen printing function can be selected to be interchangeable with hot stamping or labeling functions.
- The machine can be chosen to connect with independent hot stamping, labeling, quality inspection and other modules to combine into a multi-functional printing machine.
Optional Configuration
1. Plasma surface treatment function
Plasma surface treatment function effectively cleans and activates material surfaces to boost adhesion for subsequent printing or bonding steps.
2. Hot stamping function
Hot stamping function transfers metallic or colored foils onto substrates (like plastic, paper) to create eye-catching decorative or branding effects.
3. Labeling function
Labeling function precisely applies self-adhesive labels to various product surfaces (bottles, boxes) with stable positioning and consistent accuracy.
4. LED-UV curing function
LED-UV curing function quickly dries and solidifies UV inks/coatings using energy-saving LED light, ensuring fast production speed and high curing quality.
Technical Parameters
| Machine Model | SL1266 |
| Max.Printing Length | 250mm |
| Max.Printing Height | 200mm |
| Round Bottle Diameter | 20-100mm |
| Printing Color | 1-8 colors |
| Bottle Height | 50-280mm |
| Printing Speed | Up to 85 pcs/min |

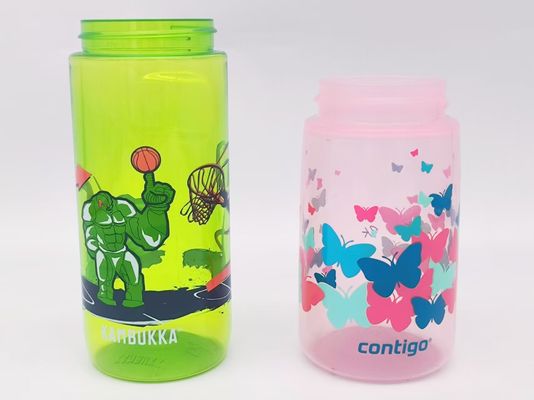

Printing Sample:
About us:
In 2024, Senny successfully delivered a 3-color bottle screen printing production line—integrated with automatic feeding and visual quality inspection—to its Brazilian customer. This linear machine is equipped with high-speed line-scan and area-scan cameras, suitable for round, oval, and flat bottles, significantly reducing manual inspection costs. The customer expressed high satisfaction with the equipment.
In 2025, Senny successfully provided a CNC 6-color screen printing and hot stamping machine designed for glass wine bottles and baby bottles to its Taiwan customer. It is compatible with both UV ink and thermosetting ink, and features highly accurate visual color matching. The screen-printed and hot-stamped patterns are exquisite and unmatched. In the same year, Senny also delivered a 6-color CNC screen printing machine with IR ink for plastic milk bottles (paired with a curing oven) to its Türkiye-based milk bottle customer. This machine is equipped with a bottle bottom laser coding function, enabling automatic generation of production dates and batch numbers.
