CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube

تفاصيل المنتج:

مكان المنشأ: Dongguan الصين
اسم العلامة التجارية: SENNY
إصدار الشهادات: CE SGS
رقم الموديل: SRS829

شروط الدفع والشحن:

الحد الأدنى لكمية: 1pc
الأسعار: negotiable
تفاصيل التغليف: حزمة الخشب الرقائقي
وقت التسليم: 45 يوم
شروط الدفع: ر/ر
القدرة على العرض: 10 أجهزة كمبيوتر/شهر
افضل سعر اتصل

معلومات تفصيلية

نموذج الآلة: SRS829 لون الطباعة: 2 ألوان
ماركة: سيني خدمات ما بعد البيع: فيديو أو عبر الإنترنت
إصدار الشهادات: CE SGS ضمان: 1 سنة
الصناعات المعمول بها: محلات الطباعة، مصنع التصنيع، الاستخدام المنزلي، الصناعة، شركة الإعلان
إبراز:

CNC automatic UV curing printing machine,2-color screen printing machine for bottles,45 Pcs/Min tube printing machine

,

2-color screen printing machine for bottles

,

45 Pcs/Min tube printing machine

منتوج وصف

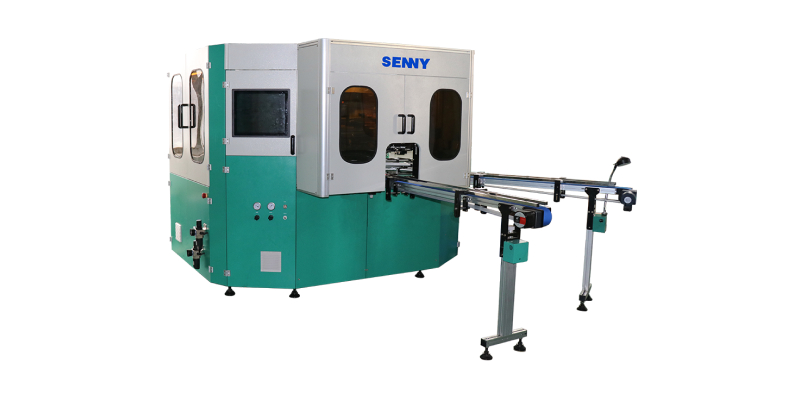

  • Product Description         2-Color 45 Pcs/Min CNC Automatic UV Curing Printing Machine For Bottle And Tube



Machine Feature



  • The machine is suitable for screen printing various colors of UV ink,hot stamping and other decorations on bottles,jars,caps and other shapes of products,which are made of plastic,metal,glass and other materials.

  • The machine is specially developed for small container printing,with compact structure and small footprint.

  • The machine adopts an integrated turntable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as ± 0.1 mm ,and the product won't be scratched.

  • The machine is driven by digital control servo motor to realize 360-degree printing of products,equipped with remote management and services functions(industry 4.0)



CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube 0







Optional Configuration:





  • LED-UV  curing system.



  • Hot stamping function.



  • Finished product quality inspection function.



  • Plasma surface treatment function.





  • Visual registration function.





Technical Parameters:



Machine Model SRS829
Work Station 2
Diameter at 360 Degree 13-60mm
Container Height 20-200mm
Max.Printing Length 200mm
Max.Printing  Height 160mm
Printing Speed Up to 45 pcs/min







Printing Sample





CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube 1

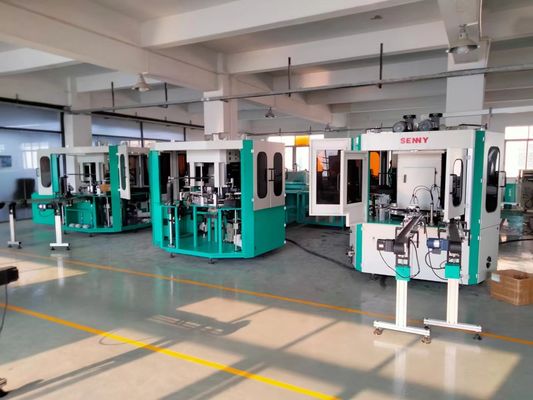

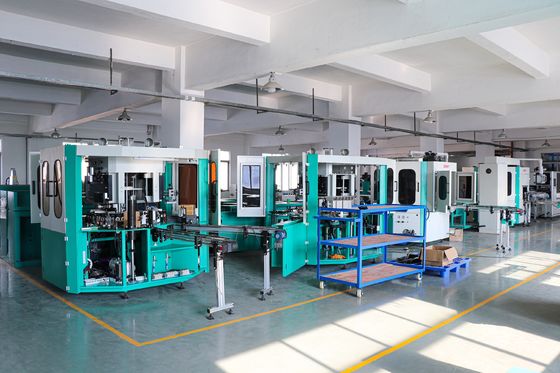

Our Factory and machines:







CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube 2



CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube 3





The differences between linear screen printing machine and CNC rotary screen printing machine:





  • The linear printing machine has a faster printing speed than the rotary printing machine, but its printing precision is lower in comparison.​

  • The linear printing machine adopts a modular design: the more colors need to be printed, the larger the machine becomes, while the rotary printing machine is more space-saving.

  • CNC printing machines are more conducive to remote management and service.

  • All printing functions of a CNC printing machine are completed with the same set of fixtures, which can avoid wear and tear.

  • CNC silk screen printing machines can adjust parameters such as the printing head via a wireless touchscreen, while linear printing machines require manual adjustment.
