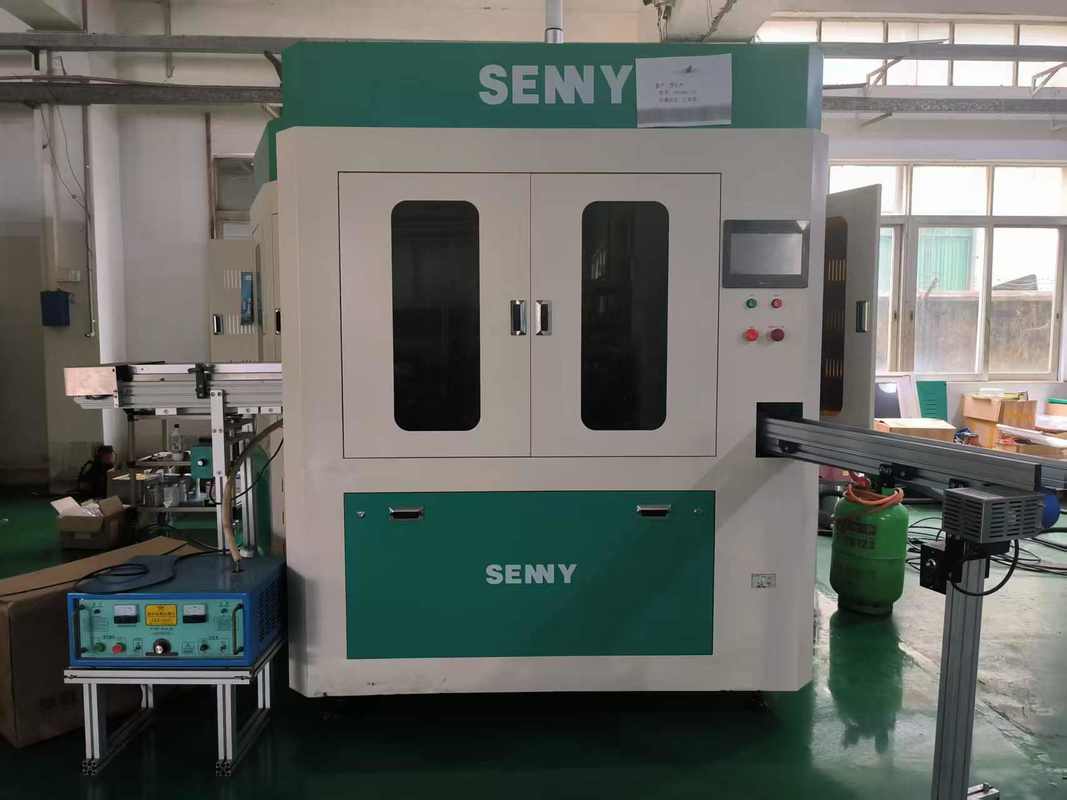

Up To 85pcs/Min Tube Screen Printing Machine For Soft Tubes High-Speed UV Curing
تفاصيل المنتج:
| مكان المنشأ: | Dongguan الصين |
| اسم العلامة التجارية: | Senny |
| إصدار الشهادات: | CE,SGS |
| رقم الموديل: | SRS566 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1pc |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | لف الفيلم |
| وقت التسليم: | 45 يومًا |
| شروط الدفع: | ر/ر |
| القدرة على العرض: | 10pcs/شهر |
|
معلومات تفصيلية |
|||
| الحد الأدنى لكمية: | 1pc | الأسعار: | negotiable |
|---|---|---|---|
| تفاصيل التغليف: | حزمة الخشب الرقائقي | وقت التسليم: | شهر واحد |
| شروط الدفع: | ر/ر | القدرة على العرض: | 10pcs/شهر |
| إصدار الشهادات: | CE SGS | تفاصيل التعبئة: | حزمة الخشب الرقائقي |
| إبراز: | high-speed tube screen printing machine,UV curing screen printing machine,soft tube printing machine with warranty,UV curing screen printing machine,soft tube printing machine with warranty |
||
منتوج وصف
Up To 85pcs/Min Tube Screen Printing Machine For Soft Tubes High-Speed UV Curing
PRODUCT
Features
- Driven by a servo motor and controlled digitally, the machine operates stably with high printing accuracy.
- Equipped with both a fixed touch screen and a mobile wireless tablet control system, it supports remote services.
- The machine adopts electrical components from well-known brands, ensuring reliable performance.
- Fixed touch screen plus mobile wireless tablet control, remote service.
Technical parameters
| Mechine Model | SRS566 |
| Printimg Color | 1+4 |
| Printing speed | Up to 85pcs/min |
| Soft Tube Diameter | 13-76mm |
| Soft Tube Length | 30-240mm |
| Max Printing Length | 220mm |
| Max Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Configuration
- Unscrambling&feeding machine Hot stamping function plasma surface treatment function
- Visual registration function LED-UV curing function Finished product quality inspection function
UV curing

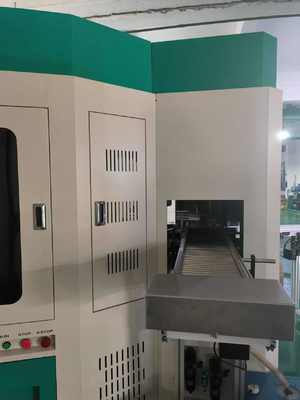

Feeding device
Hot staming for small tube
Applications
The SRS566 is a fully automatic CNC tubular UV screen printing equipment, mainly positioned as an exclusive screen printing solution for small plastic containers in the cosmetics and skincare fields.
The equipment has a wide range of applicable scenarios and enables UV screen printing on various cylindrical tubes, including cosmetic tubes, pharmaceutical tubes, toothpaste tubes, as well as tubular workpieces of different materials such as plastic, metal, glass and composite materials.
Printing sample
