CNC Automatic Tube Screen Printing Machine with 360-Degree Printing ±0.1 mm Accuracy and Remote Management

تفاصيل المنتج:

مكان المنشأ: Dongguan الصين
اسم العلامة التجارية: SENNY
إصدار الشهادات: CE SGS
رقم الموديل: SRS1039

شروط الدفع والشحن:

الحد الأدنى لكمية: 1pc
الأسعار: negotiable
تفاصيل التغليف: حزمة الخشب الرقائقي
وقت التسليم: 45 يوم
شروط الدفع: ر/ر
القدرة على العرض: 10 أجهزة كمبيوتر/شهر
افضل سعر اتصل

معلومات تفصيلية
رقم الموديل: SRS1039 اللون المطبوع: 3 ألوان
ماركة: سيني ضمان: 1 سنة
نوع اللوحة: آلة طباعة الشاشة خدمات ما بعد البيع: فيديو أو عبر الإنترنت
إبراز:

3-color tube screen printing machine,45pcs/min automatic printing machine,CNC tube screen printing machine

,

45pcs/min automatic printing machine

,

CNC tube screen printing machine

منتوج وصف

3-Color 45pcs/Min Tubes CNC Automatic Printing Machine





Machine Feature



  • SRS1039 is suitable for applying various decorative techniques—including screen printing with UV inks of multiple colors and hot stamping—on products of different shapes, such as bottles, caps, and jars. These items can be crafted from materials like plastic, metal, and glass.
​
  • Designed specifically for printing on small containers, this machine has a compact structure and takes up minimal space.
​
  • With an integrated turntable design, the machine completes all printing functions using the same set of fixtures. It offers printing accuracy as high as ±0.1 mm and guarantees no scratches on the products.
​
  • Driven by a digitally controlled motor, the machine allows for 360-degree printing of products. Additionally, it comes with remote management and service functions, meeting Industry 4.0 requirements.
​
  • The machine uses electrical components from renowned brands, incorporates a PLC control system, and supports user-friendly operation through a touch screen and a wireless tablet, ensuring stable and reliable performance.

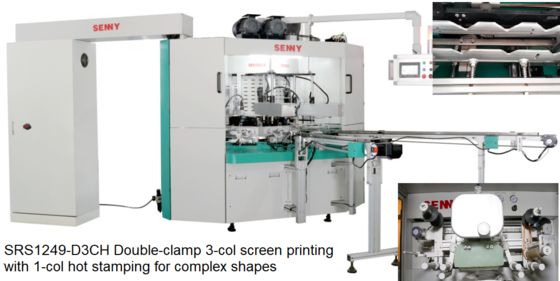

CNC Automatic Tube Screen Printing Machine with 360-Degree Printing ±0.1 mm Accuracy and Remote Management 0

​



Optional Configuration



  • Plasma surface treatment function.           Hot stamping function.         Visual registration function.



  • LED-UV curing system.                             Finished product quality inspection function.





Technical Parameters



Machine Model SRS1039
Work Station 10
Printing Color 3 colors
Container Height 20-200mm
Diameter at 360 Degree 13-60mm
Printing Speed Up to45 pcs/min
Max.Printing Length 200mm
Max.Printing Height 160mm





Printing your vision

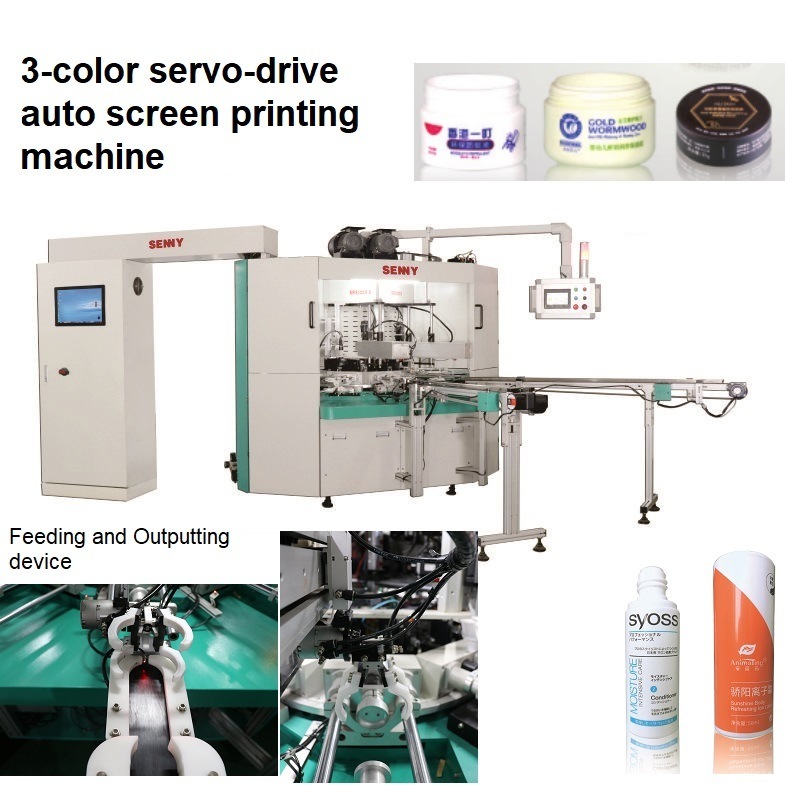

CNC Automatic Tube Screen Printing Machine with 360-Degree Printing ±0.1 mm Accuracy and Remote Management 1





About us:



     Senny serves food, medicine, toys, cosmetics, daily chemicals, electronics, decorative products and other industries. Through the use of automatic printing technologies, such as screen printing,pad printing, hot stamping, labeling, offset printing and digital printing, it realizes printing high-quality exquisite graphics & texts on the surface of various shapes of products such as plastic, metal, glass
and ceramics.

CNC Automatic Tube Screen Printing Machine with 360-Degree Printing ±0.1 mm Accuracy and Remote Management 2CNC Automatic Tube Screen Printing Machine with 360-Degree Printing ±0.1 mm Accuracy and Remote Management 3
