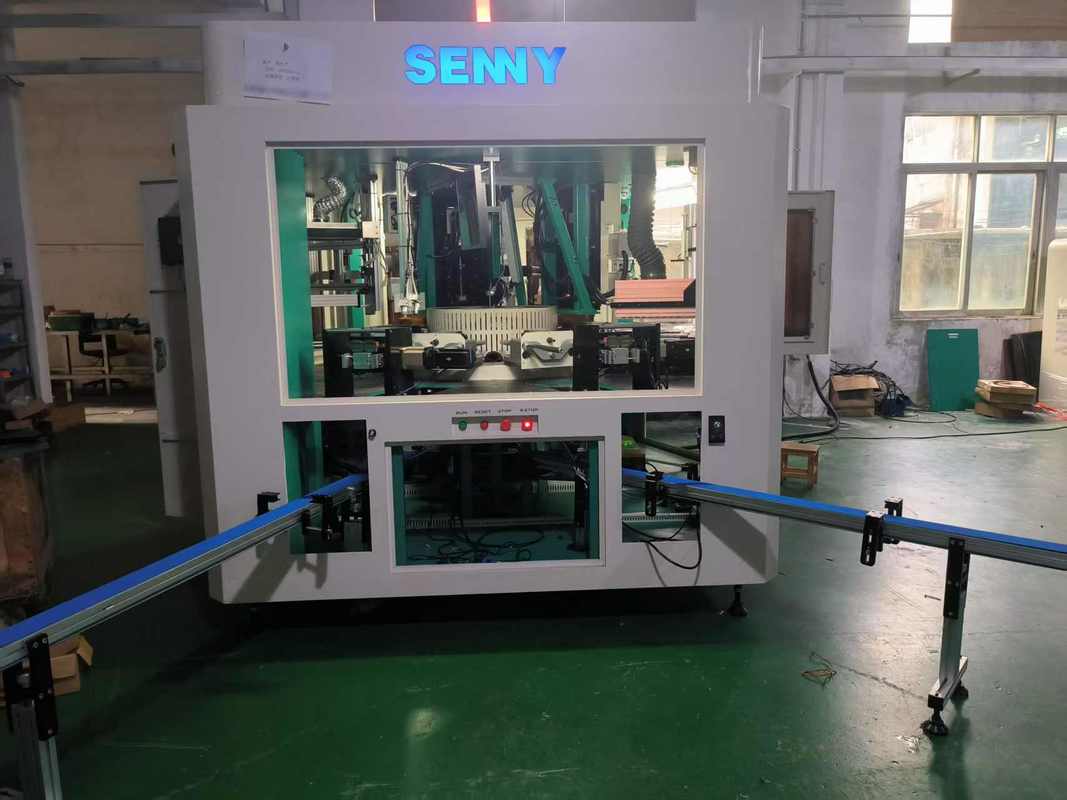

10 Work Stations Bottle Screen Printer For Plastic And Metal Products Up To 55pcs/Min
تفاصيل المنتج:
| مكان المنشأ: | Dongguan الصين |
| اسم العلامة التجارية: | SENNY |
| إصدار الشهادات: | CE SGS |
| رقم الموديل: | SRS388 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1pc |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | حزمة الخشب الرقائقي |
| وقت التسليم: | شهر واحد |
| شروط الدفع: | TT أو LC |
| القدرة على العرض: | 10pcs/شهر |
|
معلومات تفصيلية |
|||
| درجة السيارات: | تلقائي تماما | المحطات: | 10 |
|---|---|---|---|
| نوع اللوحة: | طابعة الشاشة | خدمة بعد البيع: | فيديو أو عبر الإنترنت |
| الألوان المطبوعة: | 3 | ماركة: | Senny أو OEM |
| تفاصيل الحزمة: | حزمة الخشب الرقائقي | شروط الدفع: | ر/ر |
| إصدار الشهادات: | CE | ||
منتوج وصف
10 Work Stations Bottle Screen Printer For Plastic And Metal Products Up To 55pcs/Min
Machine Application:
This machine is suitable for 360-degree printing of 3 colors of UV ink on bottles, cans, lids and other products of various shapes (such as round, oval, special-shaped) made of plastic, glass, metal and other materials.
Ptinting sample
Main Functions:
Wireless tablet control
Remote service management
Speed-adjustable conveyor belt with separate feeding
Bottle-erecting manipulator feeding
Digital-controlled servo motor-driven 3-color 360° printing
UV curing
Bottle-erecting manipulator discharging
Speed-adjustable conveyor belt discharging
Ten workstations: 1. Visual positioning of the bottom of the feeding bottle and electrostatic dust removal; 2. Flame treatment; 3. Visual positioning of the bottle body; 4. 1st color screen printing; 5. LED-UV curing; 6. 2nd color screen printing; 7. LED-UV curing; 8. 3rd color screen printing (or hot stamping); 9. UV curing; 10. Discharging.
Technical Specifications:
| Specification/Model | SRS288 | SRS388 | SRS488 | SRS688 |
| Station | 8 | 10 | 12 | 16 |
| Printing Color | 2 | 3 | 4 | 6 |
| Printing Speed | Up to 55pcs/min |
| Diameter of 360° | 13–100mm |
| Height of bottle | 20–320mm |
| Printing length | 320mm |
| Printing height | 220m |
