Container 3-Color 60 Pcs/Min CNC Automatic UV Curing Screen Printing Machine
تفاصيل المنتج:
| مكان المنشأ: | Dongguan الصين |
| اسم العلامة التجارية: | SENNY |
| إصدار الشهادات: | CE SGS |
| رقم الموديل: | SRS388 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1pc |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | حزمة الخشب الرقائقي |
| وقت التسليم: | 45 يوم |
| شروط الدفع: | ر/ر |
| القدرة على العرض: | 10 أجهزة كمبيوتر/شهر |
|
معلومات تفصيلية |
|||
| رقم الموديل: | SRS388 | اللون المطبوع: | 3 ألوان |
|---|---|---|---|
| خدمات ما بعد البيع: | فيديو أو عبر الإنترنت | ضمان: | 1 سنة |
| نوع اللوحة: | آلة طباعة الشاشة | ماركة: | سيني |
| إبراز: | 3-color automatic screen printing machine,CNC UV curing screen printer,60 Pcs/Min screen printing machine,CNC UV curing screen printer,60 Pcs/Min screen printing machine |
||
منتوج وصف

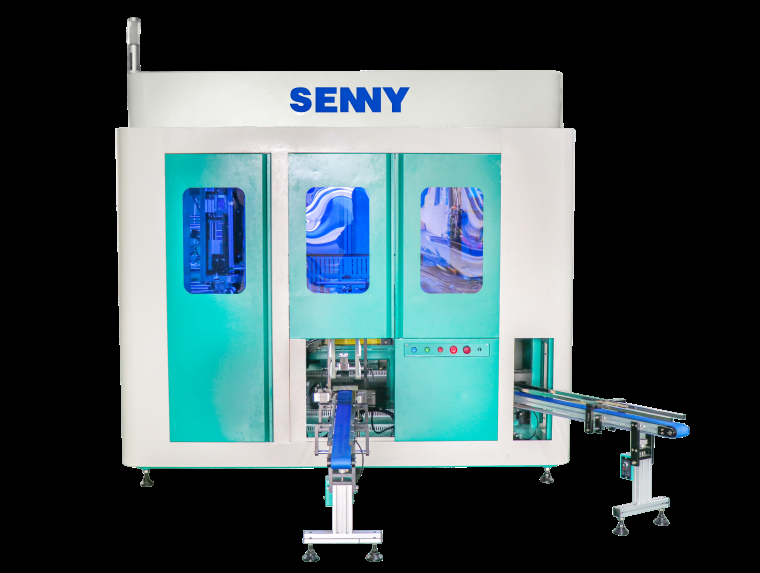

Container 3-Color 60 Pcs/Min CNC Automatic UV Curing Screen Printing Machine
Machine Feature
-

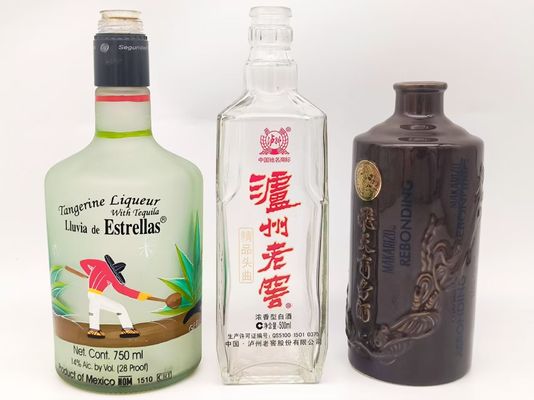

This machine is suitable for screen printing UV inks in multiple colors, and also supports hot stamping and other decorative procedures. It is applicable to products of diverse shapes—like bottles, jars and caps—manufactured from materials such as plastic, metal and glass.
-
With an integrated turntable design, the machine fulfills all printing functions via the same set of fixtures. It reaches a printing accuracy of up to ±0.1 mm and guarantees no scratches on the products.
-
Powered by a digitally controlled servo motor, the machine allows for 360-degree printing on products. Additionally, it is equipped with remote management and service functions, complying with Industry 4.0 standards.
Optional Configuration
- Product lying flat feeding and discharging function. LED-UV curing system. Hot stamping function.
- Finished product quality inspection function. Plasma surface treatment function. Labeling function.
- Bottle body visual registration function. Bottle bottom visual registration function.
Technical Parameters
| Machine Model | SRS388 |
| Printing Color | 1-3 |
| Printing Speed | Up to 60 pcs/min |
| Diamater at 360 Degree | 13-100mm |
| Container Height | 20-320mm |
| Max.Printing Length | 300mm |
| Max.Printing Height | 200mm |
Printing your vision
About us:
Senny caters to a diverse range of industries, including food, pharmaceuticals, toys, cosmetics, daily chemicals, electronics, and decorative products. Leveraging automatic printing technologies—such as screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing—it delivers high-quality, intricate graphics and text on the surfaces of products in various shapes, crafted from materials like plastic, metal, glass, and ceramics.
تريد أن تعرف المزيد من التفاصيل حول هذا المنتج
