2 Colors Bottle Screen Printing Machine Flat Or Oval Bottle Double Sides Up To 85pcs/Min
تفاصيل المنتج:
| مكان المنشأ: | Dongguan الصين |
| اسم العلامة التجارية: | SENNY |
| إصدار الشهادات: | CE SGS |
| رقم الموديل: | SL1488-2C |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1pc |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | حزمة الخشب الرقائقي |
| وقت التسليم: | شهر واحد |
| شروط الدفع: | TT أو LC |
| القدرة على العرض: | 50pcs/شهر |
|
معلومات تفصيلية |
|||
| درجة السيارات: | تلقائي تماما | المحطات: | 1-12 |
|---|---|---|---|
| نوع اللوحة: | طابعة الشاشة | خدمة بعد البيع: | فيديو أو عبر الإنترنت |
| الألوان المطبوعة: | 1 إلى 12 | ماركة: | Senny أو OEM |
| تفاصيل الحزمة: | حزمة الخشب الرقائقي | شروط الدفع: | ر/ر |
| إصدار الشهادات: | CE | ||
| إبراز: | bottle screen printing machine for flat bottles,double sided bottle screen printer,high speed oval bottle printer,double sided bottle screen printer,high speed oval bottle printer |
||
منتوج وصف

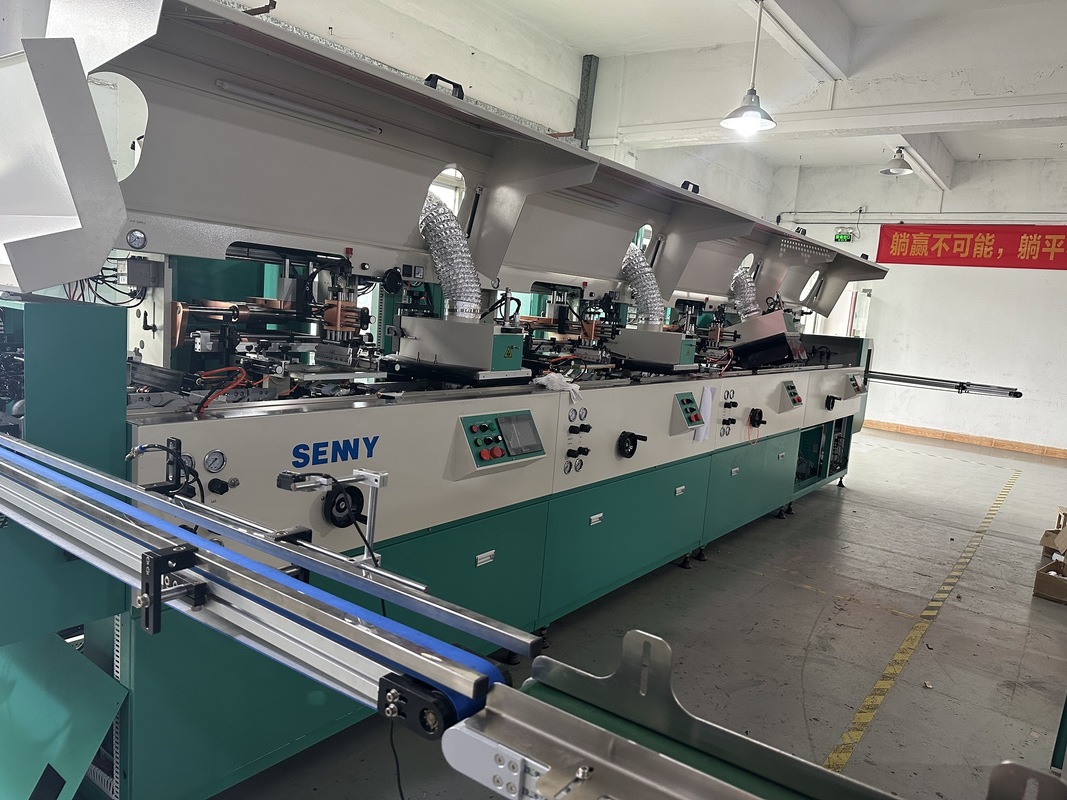

2 Colors Bottle Screen Printing Machine Flat Or Oval Bottle Double Sides Up To 85pcs/Min
Plastic Bottle printing machine.pdf
Machine Features:
- The machine is suitable for screen printing of various colors of UV ink, hot stamping, labeling and other decorations on round, oval, square and other shapes of plastic bottles.
- The machine has perfect transmission design, stable running, fast changeover, easy operation and excellent performance
- The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
- The machine uses a highly customizable modular structure, which can be connected in a straight line to be a 1-8 color printing machine.
- The standard configuration of the machine is a screen printing and UV curing module, and the screen printing function can be selected to be interchangeable with hot stamping or labeling functions.
- The machine can be chosen to connect with independent hot stamping, labeling, quality inspection and other modules to combine into a multi-functional printing machine.
Technical Specifications:
| Machine running speed | up to 85pcs/min(printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-130mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW X colors |
| Main machine size | Length 2900mm X Width 1200mm X Height 2000mm(Exclude loading and uploading convey belt) |
| Main machine weight | 1200kg |
| Auxilary machine size | Length 1190mm X Width 1200mm X Height 2000mm |
| Auxilary machine weight | 1000kg |
Optional Configuration:
- Plasma or flame surface treatment system.
- Hot stamping or labeling system.
- LED-UV curing or UV curing system.
- Automatic bottle unscrambler feeding.
- Visual defects detect
Customers can select different curing systems based on their specific requirements.
Traditional UV curing features mature technology, along with low lamp replacement costs and low maintenance expenses.
Compared with traditional high-pressure mercury lamps, LED curing boasts the advantages of soft light output, long service life, energy efficiency, safety and environmental friendliness, a wide irradiation area, small space occupation, and uniform light spots. However, it has a notable drawback: relatively high maintenance and replacement costs.
Printing Device
