5 Station Multicolor Screen Printing Machine 380V For Round Bottle 1200pcs/Hr

تفاصيل المنتج:

مكان المنشأ: دونغقوان قوانغدونغ الصين
اسم العلامة التجارية: SENNY
إصدار الشهادات: CE SGS
رقم الموديل: SRS1669-DR5C

شروط الدفع والشحن:

الحد الأدنى لكمية: 1pc
الأسعار: negotiable
تفاصيل التغليف: حزمة الخشب الرقائقي
وقت التسليم: شهر واحد
شروط الدفع: T/T وLC
القدرة على العرض: 10pcs /شهر
افضل سعر اتصل

معلومات تفصيلية

نوع اللوحة: طابعة الشاشة محطة: 5 محطة
لون الطباعة: 5 ألوان شكل المنتج: دائري
وارنت: سنة واحدة بعد الخدمة: الدعم الفني عبر الإنترنت أو الفيديو
طريقة التثبيت: المشبك المزدوج شروط الدفع: ر/ر
تفاصيل الحزمة: حزمة الخشب الرقائقي إصدار الشهادات: CE
القدرة على العرض: 5pcs/شهر
إبراز:

5 station multicolor screen printing machine,multicolor screen printing machine for round bottles,380V screen printing machine 1200pcs/hr

,

multicolor screen printing machine for round bottles

,

380V screen printing machine 1200pcs/hr

منتوج وصف

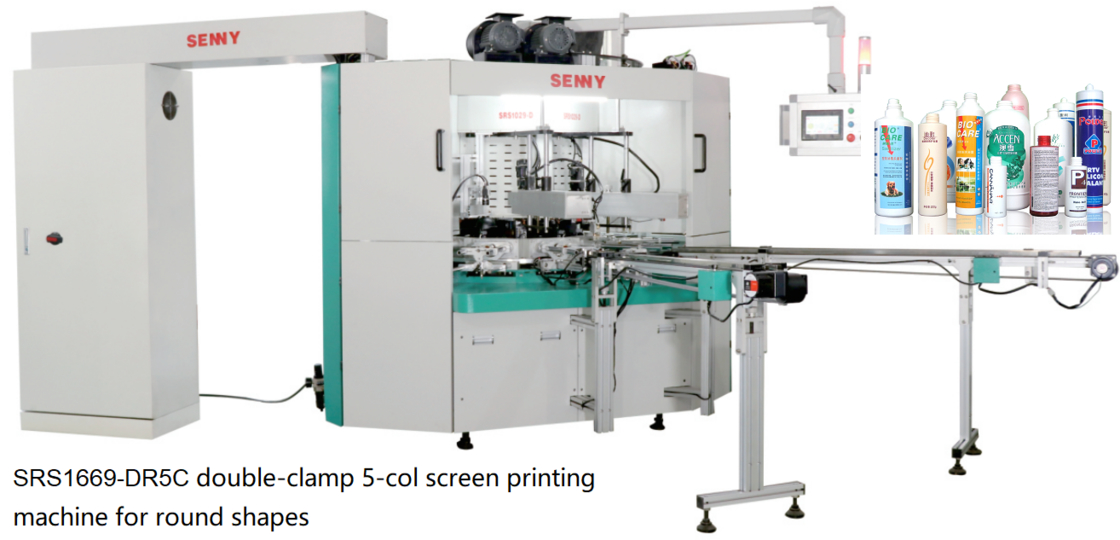

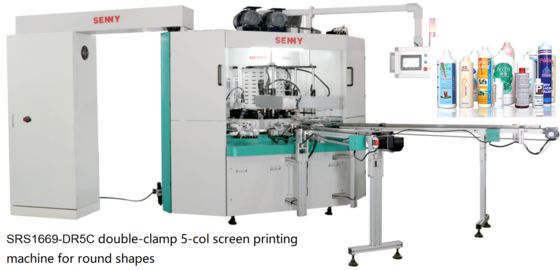

5 Station Multicolor Screen Printing Machine 380V For Round Bottle 1200pcs/Hr



Features:



1. Machine Frame & structures made by high-intensity aluminum alloy and stainless steel.
2. With PLC control system, touch screen interface. Fast setup & quick tooling change over for customer's easy
operation and adjustment
3. arc-shaped screen printing to avoid pattern distortion
4. Optional: Made based on the customer's special requirements. This includes antistatic dust removing device, flame treatment, radian screen printing,UV/IR system, unloading conveyor.
5. servo motor control screen printing and servo positioning.
6. Main components from Panasonic, Schneider, SMC, OMRON international brand.
7. working with PLC control system.


Flame treating                                                    Screen printing device

5 Station Multicolor Screen Printing Machine 380V For Round Bottle 1200pcs/Hr 0 5 Station Multicolor Screen Printing Machine 380V For Round Bottle 1200pcs/Hr 1


Technical Specifications



Model SRS1249-DR5C
Printing stations 5 (screen printing colors)
Printing speed Up to 45pcs/min
Max. printing area L250mm X W160mm
Product height 250mm
Air presser 6-7 bar
Power 380V 50/60HZ



5 Station Multicolor Screen Printing Machine 380V For Round Bottle 1200pcs/Hr 2



Application:



This machine is a multifunctional rotary multicolor screen printing machine, which can be configured with a hot foil stamping device. It is mainly used for printing patterns and text on round-shaped bottles, jars and caps, and features easy operation, accurate positioning, high automation and fast printing speed.

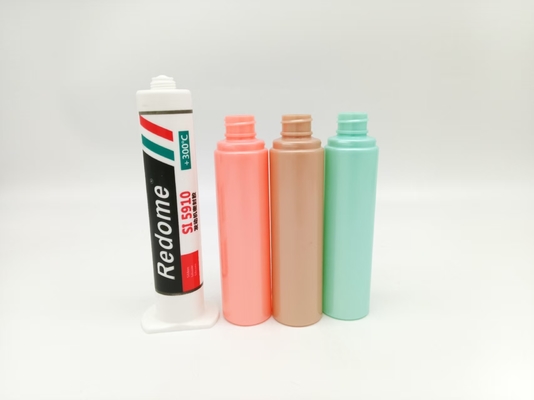

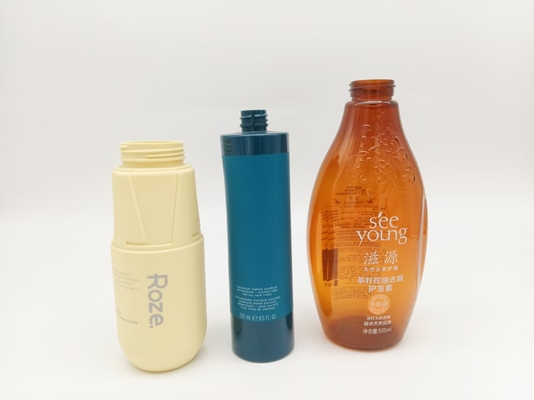

Printing samples

5 Station Multicolor Screen Printing Machine 380V For Round Bottle 1200pcs/Hr 3



Customer's factory using our machines:

5 Station Multicolor Screen Printing Machine 380V For Round Bottle 1200pcs/Hr 45 Station Multicolor Screen Printing Machine 380V For Round Bottle 1200pcs/Hr 5
