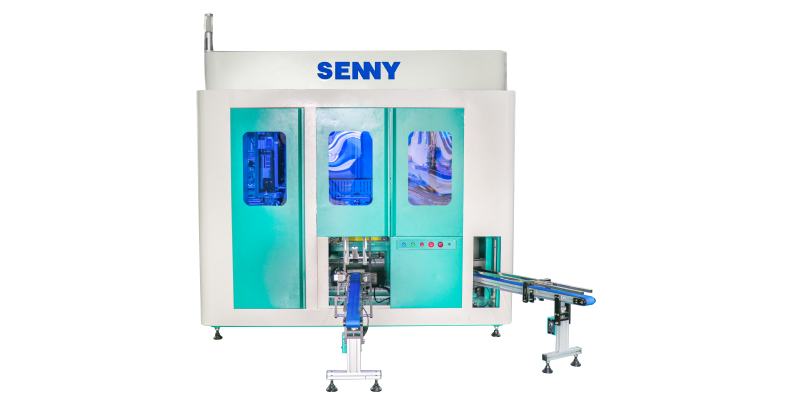

6-Color 60pcs/Min Container CNC AutomatiC UV Curing Screen Printing Machine
تفاصيل المنتج:
| مكان المنشأ: | Dongguan الصين |
| اسم العلامة التجارية: | SENNY |
| إصدار الشهادات: | CE SGS |
| رقم الموديل: | SRS688 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1pc |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | حزمة الخشب الرقائقي |
| وقت التسليم: | 45 يوم |
| شروط الدفع: | ر/ر |
| القدرة على العرض: | 10 أجهزة كمبيوتر/شهر |
|
معلومات تفصيلية |
|||
| اسم النموذج: | SRS688 | نوع اللوحة: | آلة طباعة الشاشة |
|---|---|---|---|
| ماركة: | سيني | خدمات ما بعد البيع: | عبر الإنترنت أو الفيديو |
| ضمان: | 1 سنة | اللون المطبوع: | 6 ألوان |
| إبراز: | 6-color automatic screen printing machine,60pcs/min UV curing printing machine,CNC container screen printing machine,60pcs/min UV curing printing machine,CNC container screen printing machine |
||
منتوج وصف
6-color 60pcs/min CNC Glass Bottle 6-Color IR+UV Screen Printing Ma
Machine Feature

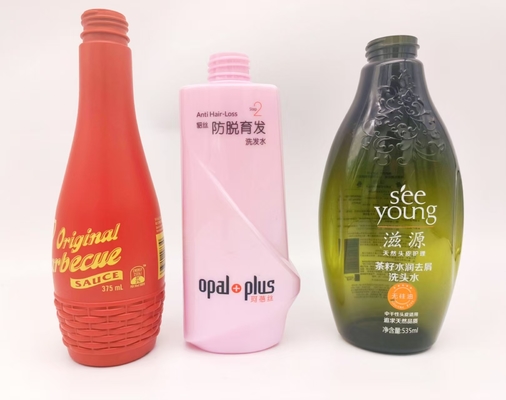

- This equipment is suitable for performing decorative processes—including multi-color UV ink screen printing and hot stamping—on the surfaces of bottles, cans, caps and other special-shaped products. It works with materials like plastic, metal and glass, effectively meeting the surface beautification needs of products with different materials and configurations.

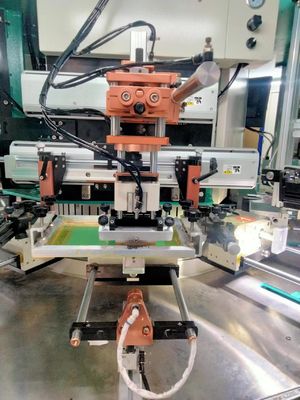

- The SRS688 features an integrated turntable design, where all printing processes are completed using the same set of fixtures. This design not only guarantees a high printing precision of ±0.1mm but also effectively prevents products from being scratched during processing.
- Driven by a digital servo motor, the equipment enables 360° all-round printing on products. Additionally, it comes with remote management and service functions, which comply with Industry 4.0 technical standards and simplify remote monitoring, operation and maintenance.
- All core electrical components are sourced from well-known brands, paired with a PLC control system. It also supports user-friendly touch screen operation and wireless tablet control, balancing stable equipment performance with easy operation.
Optional Configuration
- Product lying flat feeding and discharging function. LED-UV curing system. Hot stamping function.
- Finished product quality inspection function. Plasma surface treatment function. Labeling function.
- Bottle body visual registration function. Bottle bottom visual registration function.
Technical Parameters
| Machine Model | SRS488 | SRS688 |
| Printed Color | 4 | 6 |
| Max.speed | Up to 60 pcs/min | Up to 60 pcs/min |
| Diameter at 360° | 13-100mm | 13-100mm |
| Container height | 20-320mm | 20-320mm |
| Max.Printing Length | 300mm | 300mm |
| Max.Printing Height | 200mm | 200mm |
Printing your vision
About us:
Senny serves a diverse range of industries, including food, medicine, toys, cosmetics, daily chemicals, electronics, and decorative products. By utilizing advanced automatic printing technologies—such as screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing—it achieves high-quality, exquisite graphic and text printing on the surfaces of products of various shapes, which are made from materials like plastic, metal, glass, and ceramics.
Since 1994, Senny has steadfastly adhered to its business philosophy of providing customers with high-quality products and services. It adopts cutting-edge electrical control components and materials for R&D and manufacturing, while constantly upgrading the printing quality of various products to satisfy the growing market demands for high-quality packaging.
