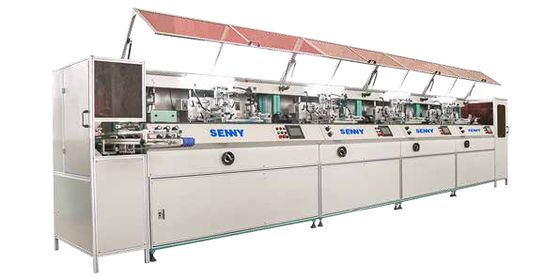

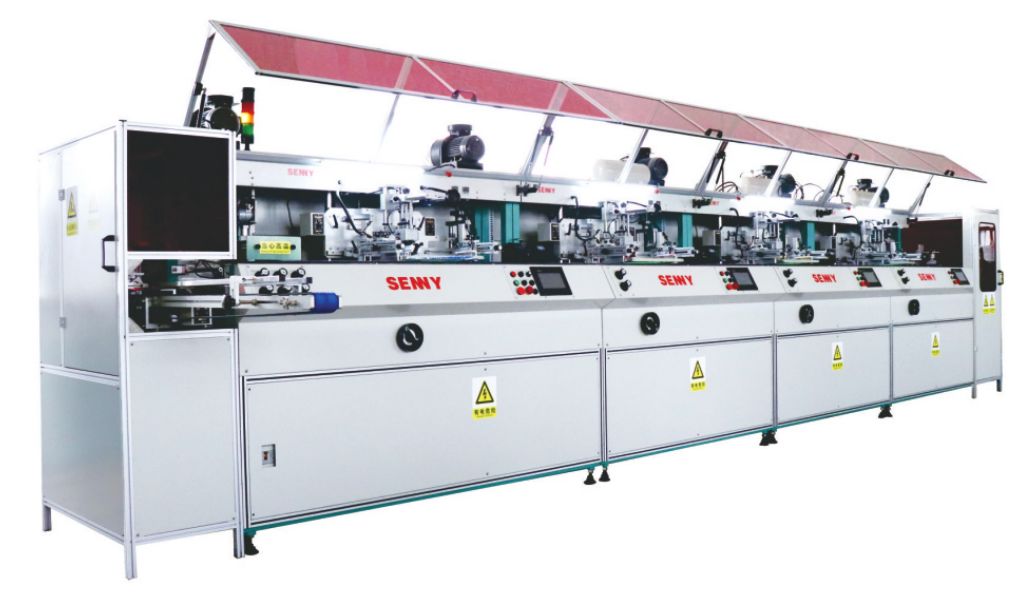

Plastic Bottle Servo-Driven Screen Printer PLC Control System 70pcs/Min

Plastic Bottle Servo-Driven Screen Printer PLC Control System 70pcs/Min

Machine Features:

This equipment is suitable for multi-color UV screen printing, hot stamping, labeling and other decorative processing on round, oval, square and other plastic bottles, applicable to cosmetic bottles, beverage bottles and other products.

Driven by a digitally controlled servo motor, it achieves a printing accuracy of ±0.03mm, supports 360° full-circumference printing, and is equipped with Industry 4.0 remote management functions for remote monitoring and debugging.

Core electrical components are from well-known brands, paired with a touch screen and PLC system, ensuring easy operation and stable, reliable performance.

With a highly customizable modular structure, it supports 1-8 color online combination. The standard configuration includes screen printing and UV curing modules; the screen printing function can be quickly swapped with hot stamping or labeling. It can also be equipped with independent hot stamping, labeling, quality inspection modules to form a multi-functional production line.

Technical Specifications:

Applications

SL1888 Plastic Bottle Servo UV Printing Machine C is a servo-driven UV printing equipment. Its application scope is very wide, and it can be used for screen printing of many containers, such as square containers, pigment containers, chemical containers, round containers, etc.

This model is suitable for printing various colors of thermosetting inks on the surface of plastic round, oval, square bottles and cans (e.g. feed bottles, water bottles).

The printing function of the machine is servo-driven, allowing easy 360-degree printing through digital control.

The machine is modular, with each module containing independent screen printing and hot-air surface drying functions, and linear combination connections for up to an 8-color integrated production line.

After printing, the finished product enters an oven at a maximum temperature of 120° and is baked by a robot for 10 minutes for complete curing.

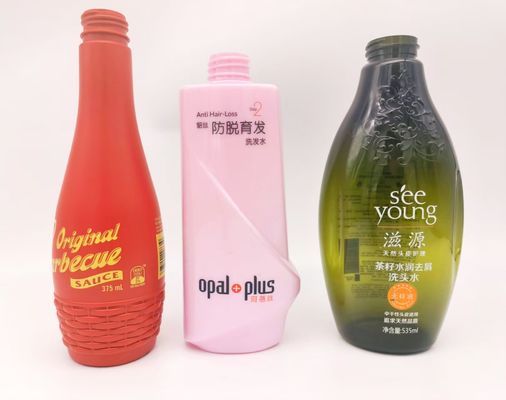

Printing Sample
